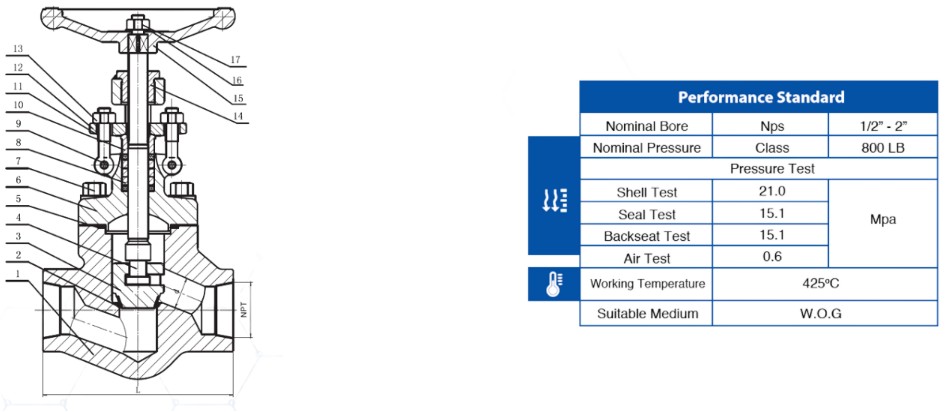

Details
Technical Requirements
- Design & manufacture as to : API 602
- Screw Ends Standard : ASME B1. 20. 1
- Testing record as to : API 598
- Pressure - Temperature conforms as to : ASME B16.34
| No |
Part Name |
Material |
| 1 |
BODY |
A105 |
| 2 |
SEAT |
INT |
| 3 |
DICS |
420 |
| 4 |
STEM |
F6A |
| 5 |
GASKET |
SS304+FLEXIBLE GRAPHITE |
| 6 |
BONNET |
A105 |
| 7 |
BOLT |
B7 |
| 8 |
PACKING |
GRAPHITE |
| 9 |
PIN |
SS |
| 10 |
GLAND |
410 |
| 11 |
GLAND EYEBOLT |
B7 |
| 12 |
GLAND FLANGE |
A105 |
| 13 |
HEX.NUT |
2H |
| 14 |
STEM NUT |
1035 |
| 15 |
HANDWHEEL |
A197 |
| 16 |
NAMEPLATE |
AL |
| 17 |
ADJUSTING NUT |
CS |
| NPS |
L |
NPT |
d |
| 1/2” |
79 |
1/2” |
10 |
| 3/4” |
92 |
3/4” |
13 |
| 1” |
111 |
1” |
17.5 |
| 1-1/4” |
120 |
1-1/4” |
23 |
| 1-1/2” |
150 |
1-1/2” |
28 |
| 2” |
172 |
2” |
35 |
| 2-1/2” |
200 |
2-1/2” |
42 |
| 3” |
245 |
1-1/2” |
51 |
